DW088CG Cross Line Green Beam LASER Level 20/50m


DeWalt DW088CG-XJ

Self-levelling green-beam, cross-line LASER 20/50m, ±0.3mm/m, ±4°

More details

In stock

199,00 € Tax included

-26,00 €

Before 225,00 €

1.9 kg

Add to wishlist

More info

DeWalt DW088CG features

  • Green Beam is 4x brighter than Red Beam
  • Self-levelling cross line laser is accurate to ±0.3 mm/m in levelling applications
  • Projected lines: horizontal, vertical and cross line
  • Visibility range: 20m
  • Pulse mode allows use with DE0892G detector to increase the range to 50m
  • Self-levelling up to 4 degrees with automatic out of level indications with accuracy +/-3mm per 10m
  • Rear mounted magnets on pivoting base for flush attachment to metal studs + magnetic fixing angle
  • Overmoulded housing (IP 54) and thick glass protects the Laser
  • Kit box protects unit and helps maintain calibration when stored in gang box
  • 1/4” thread for tripod mounting
  • Two button operation and battery state indicator for ease of use
  • Powered by 3 x AA batteries for 16 hours runtime

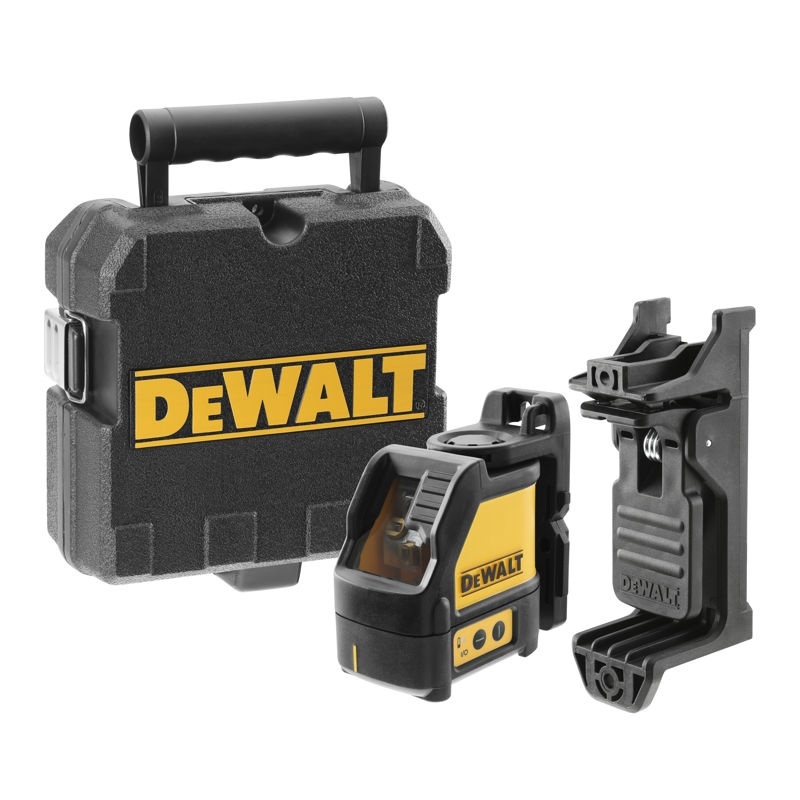

Standard Gear

  • 3 x AA size alkaline batteries
  • Wall mount bracket with magnet and clip
  • Heavy duty carrying case

DeWalt - 3 year guarantee
DeWalt - 3 year guarantee

Data sheet

Laser classII
Laser wave length510-530nm, ≤ 1.3mW
Laser Output (diodes)2
LASER BeamGreen
Self-leveling range±4°
Levelling Accuracy±0.3 mm/m
Maximum measuring distance (optical)20 m
Maximum measuring distance (target)50 m
AccessoriesMounting base
Tripod connectionYes (1/4')
Beam directionHorizontal/vertical
Additional featuresCan be mounted on wall, wood, metalic surfaces
Battery typeAA
Number of batteries3
Usage batteries3 x 1.5 V
Carrying caseYes
Length112 mm
Height113 mm
Width61 mm
Weight (with battery)550 gr
Guarantee3 years (1+2)
