FMHT1-77348 FatMax FCL-G Cross Line Green Beam LASER 20/50m

FMHT1-77348

Stanley FMHT1-77348

FCL-G Self-leveling cross-line green-beam LASER level.
Working range 20/50m, accuracy ±3mm/10m, ±4°

More details

In stock

288,00 € Tax included

-27,00 €

Before 315,00 €

1.9 kg

Add to wishlist

More info

Stanley FMHT1 77348 (FCL-G Green Beam) features

  • Allows you to build a crossing horizontal and vertical linear projections
  • Green beam is x4 brighter than red beams
  • Generates 2 beams: directed vertically upwards and downwards
  • Operating Range: 20m optical - up to 50 m with detector
  • New design - Rubber over-molded body
  • Pulse Mode allows for working outdoors to use a laser beam detector (not supplied)

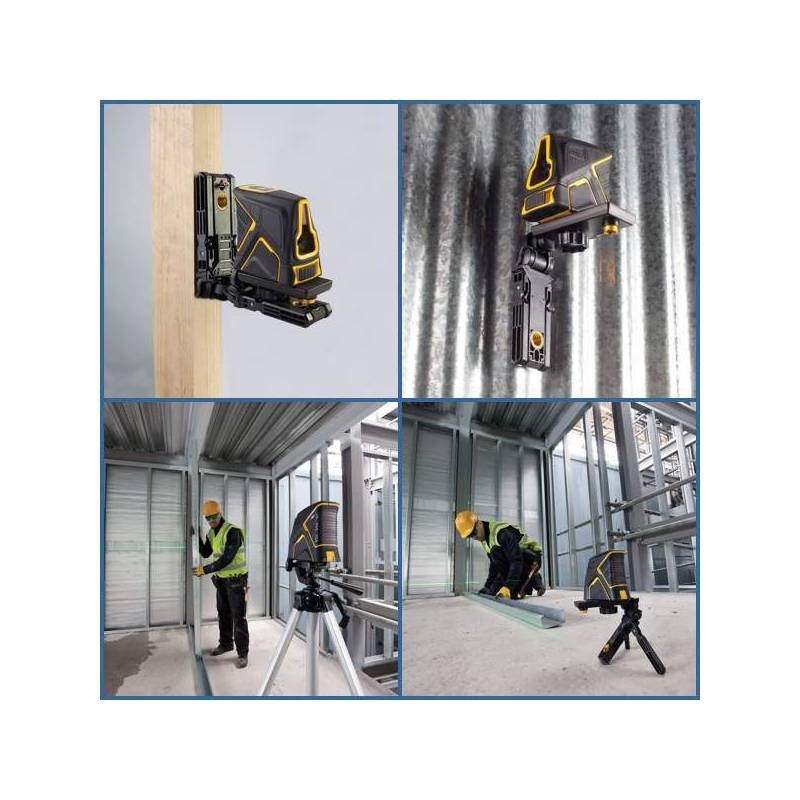

  • Magnetic multi-use tripod and various mounts allow the unit to be fixed to standard or camera tripod, magnetically fixed to a metal surface or strapped to a pipe or scaffold
  • Pendulum compensator lock for safe transport
  • Battery life: 10 hours intermittent use
  • Powered by 4 AA alkaline batteries

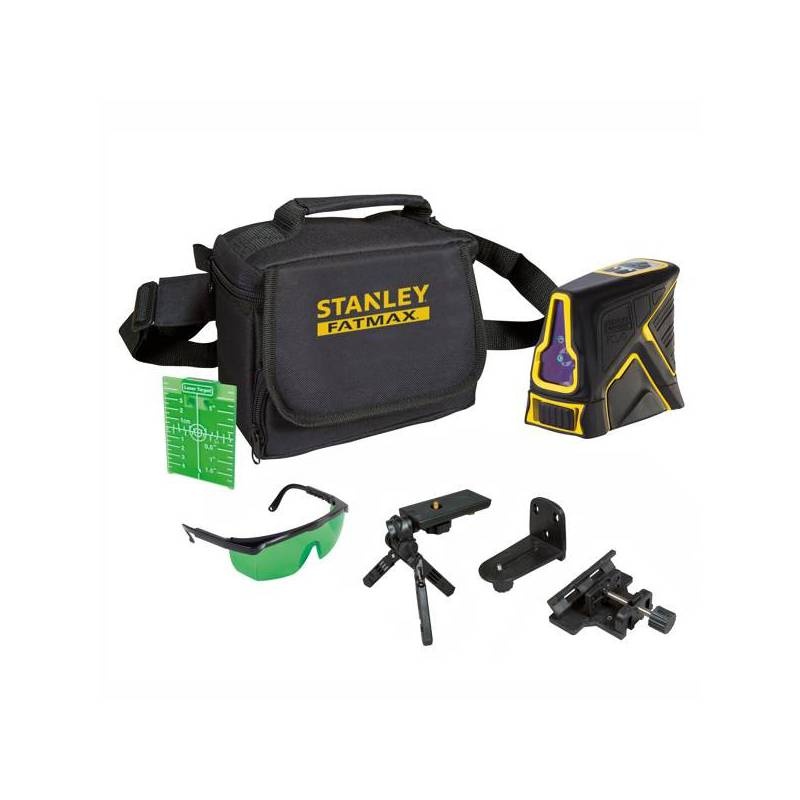

Standard Gear

  • Carrying bag with inner compartments and outer pocket
  • Mount base for walls etc
  • Mount base for pipes etc
  • Magnetic multi-use tripod
  • Green safety goggles
  • Green optical target
  • 4x AA alkaline batteries

Stanley Warranty

Data sheet

Laser classII
Laser wave length510-530 nm
Laser Output (diodes)4
Self-leveling range±4°
Levelling Accuracy±3 mm / 10 m
Maximum measuring distance (optical)20 m
Maximum measuring distance (target)50 m
Accessories2 mount bases, tripod, goggles, optical target
Tripod connectionYes (1/4' and 5/8')
Beam direction2 linear projections
Runtime10h
TypeGreen beam cross laser level
Dimensions110x110x65 mm
Additional featuresSelf leveling, cross line
Battery typeAA
Number of batteries4
BatteriesIncluded
Carrying caseYes
Guarantee2 years
