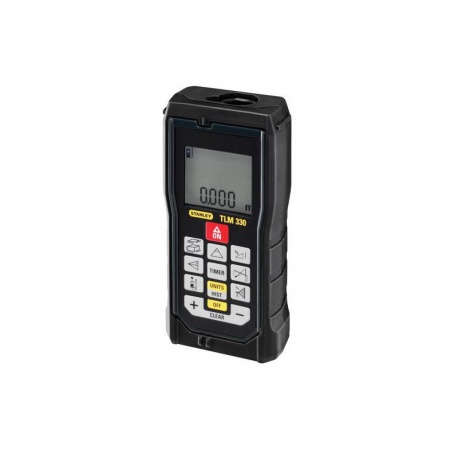

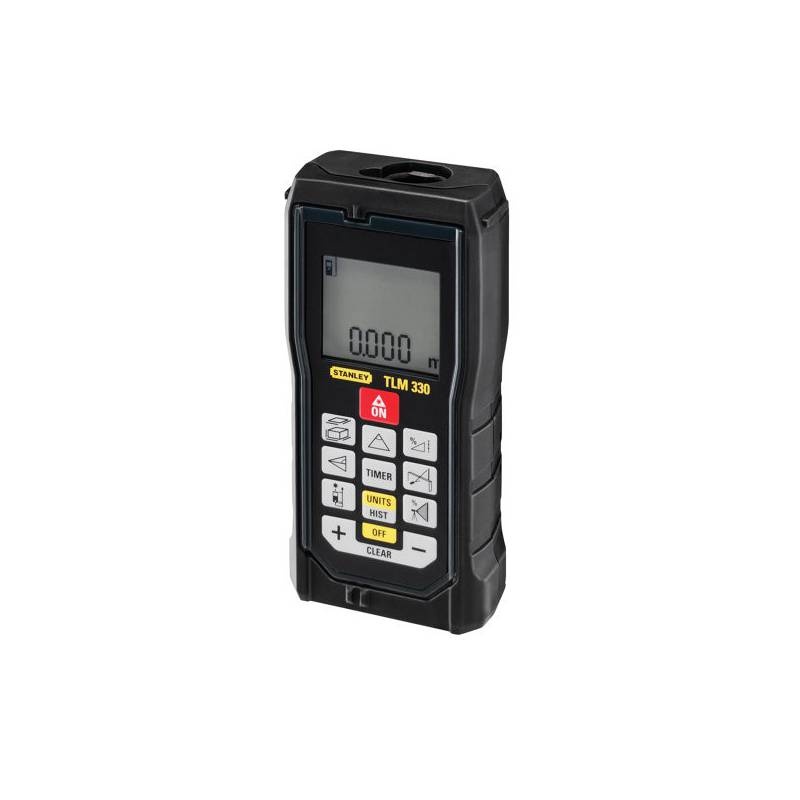

STHT1-77140 TLM330 LASER Measurer - 100m

STHT1-77140

Stanley STHT1-77140 (TLM330)

LASER Distance Measurer, 100m, ±1.0mm

More details

This product is no longer in stock

199,00 € Tax included

-31,00 €

Before 230,00 €

0.5 kg

Add to wishlist

More info

Stanley STHT1 77140 (TLM330) Features

  • High accuracy of ±1.0mm over entire range for up to 10m measurements
  • Measurement range : 0.05m to 100m

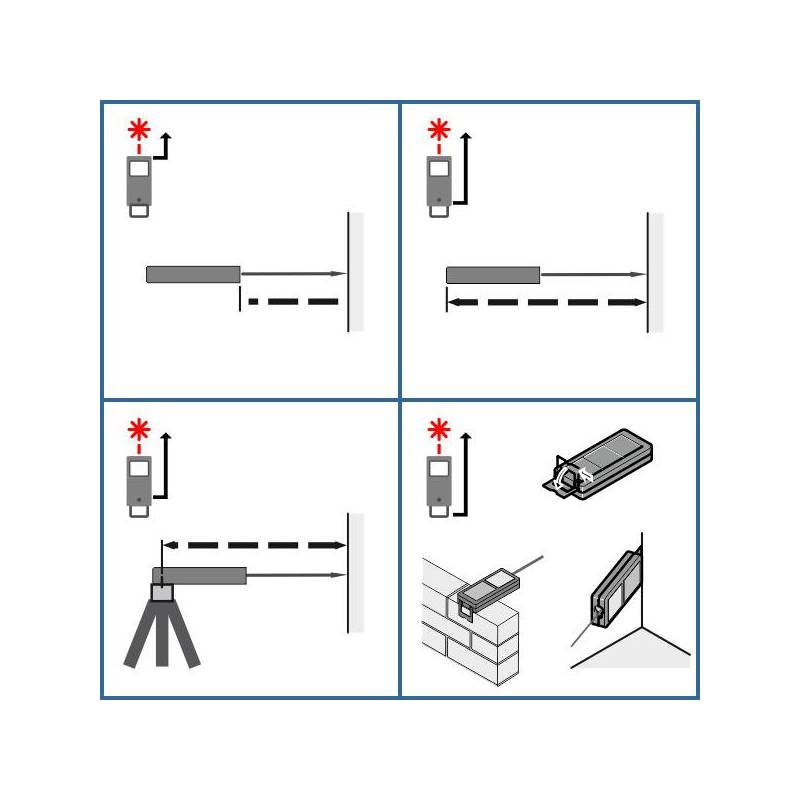

  • Measurements can start from 4 positions of the unit
  • Multi-measurements add & subtract function
  • Pythagoras function (3 points) for height measurement of an object, from a distance
  • Calculates linear, area, volume, tilt and angle
  • Plus/minus button quickly calculates multi measurements
  • Single Button Operation
  • Continuous measurement
  • Toggles between different units of measure
  • Historical memory, up to 20 measurements can be stored and used in functions

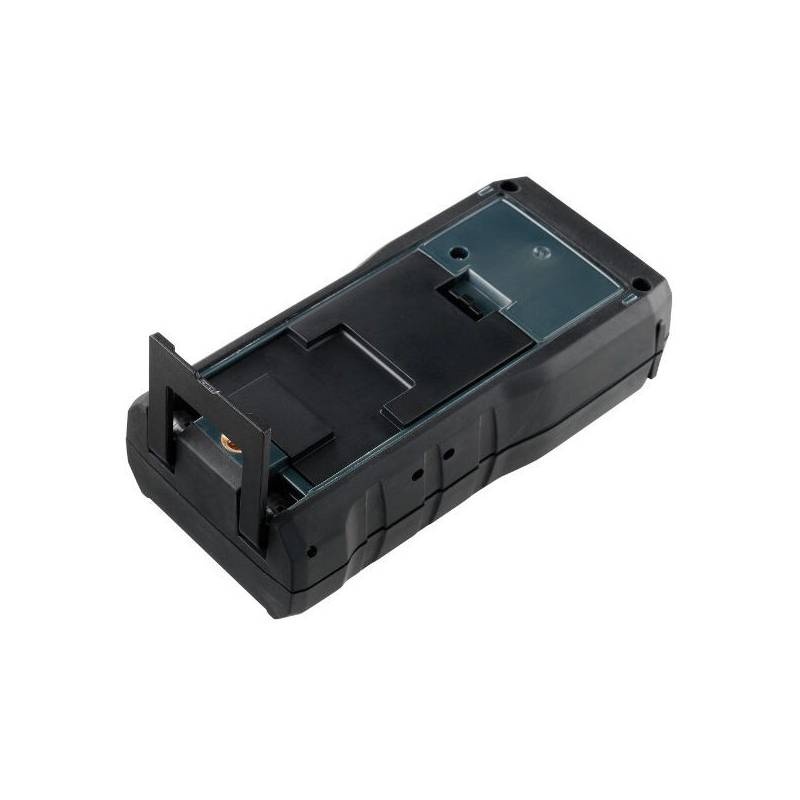

  • Folding out endpiece for more accurate measurements, adds third measuring start position
  • Protection : IP 54 (dust-proof, splash-proof)
  • Belt mounted carrying case and batteries included

Standard Gear

  • Carrying case, mountable on working belts
  • 2 AAA batteries
  • Instructions and technical data CD

Stanley Warranty

Data sheet

Laser classII
Laser wave length635nm, ≤ 1mW
Range0.05-100 m
Measuring accuracy±1mm / 10m
Smallest unit display1 mm
CalculationsLinear, square, cubic, angles
Operation temperature range-10 to +50°C
Storage temperature range-25 to +70°C
Pythagoras function3 points + partial height
Runtime5000 measurements (2 x AAA)
Dimensions115.6x58x32 mm
Device auto power offAfter 180"
LASER auto power offAfter 90"
Display illuminationYes
Folding out endpieceYes
Bluetooth connectivityNo
Beep indicatorYes
History20 entries
Additional featuresContinuous, instant or consecutive measurements. Minimum-maximum measurement display. Timeswitch.
Battery typeAAA
Number of batteries2
Carrying caseYes
Weight (with battery)155 gr
Guarantee1 year
